LAP Electrical Automotive Products

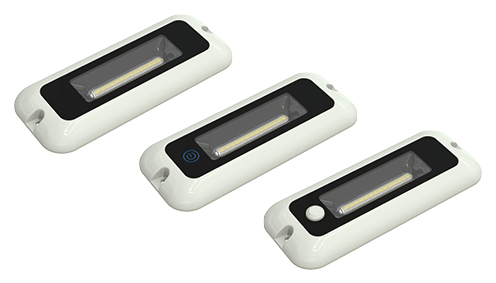

LAPCV414 Series



LAPCV414 Series New for 2024, the LAPCV414 LED interior lamp series is 156mm in length and backed by our 3-year warranty and is available in 3 operating modes.
Main Features:
  • Multi-voltage operation (10-30V)
  • EMC (ECE R10) approved
  • Heavy duty metal housing
  • Direct feed, touch switch and PIR sensor options
  • 156 (L) x 62 (W) x 13mm (H)
  • IP68 ingress protection
  • 602 effective Lumen
  • Manufactured with 14 x 1W OSRAM LEDs
  • 6000K cool white colour temperature
  • Supplied with 200mm cable length
  • 3 year warranty

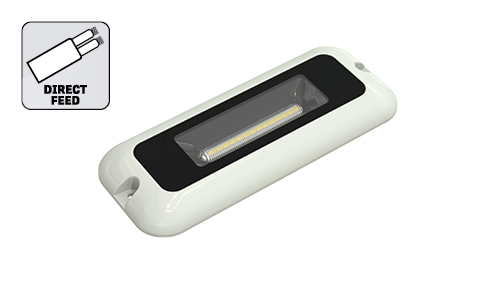

LAPCV414/DF (Direct Feed)
LAPCV414/DF (Direct Feed)
LAPCV414/TS (Touch Switch)
LAPCV414/TS (Touch Switch)

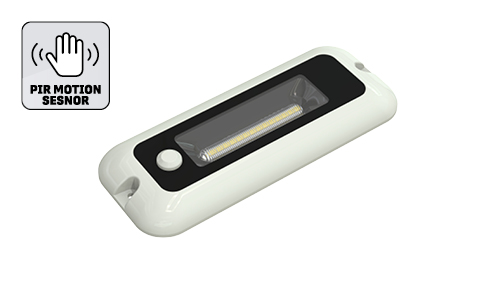

LAPCV414/PIR (Motion Sensor)
LAPCV414/PIR (Motion Sensor)
LAPCV414 Series

NQA IATF 16949 and ISO 14001 Registered

Driven by Quality


LAP is a highly-accredited company - and due to its strong emphasis on quality control and complete focus on Total Quality Management principles, holds key Automotive industry-recognised certifications.
