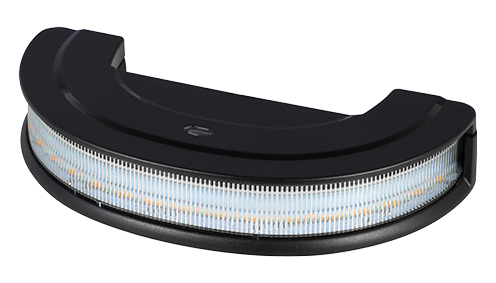

CLED36A (IP69K) Corner

The new CLED36A corner LED modules provide ECE R65 approved light output and can be mounted on each corner of a vehicle to provide 360° of visual warning light.

---

Main Features:

• ECE R65 class I and class II approved
• EMC (ECE R10) approved
• Multi-voltage (10-30V)
• 36 x 1W LED lights
• Single, double and quad flash meets R65 approval
• Three R65 approved categories (1 x CLED36A meets 'X', 2 x CLED36A meets 'HT', 4 x CLED36A meets 'T')
• IP67 & IP69K rated ingress protection
• 19 flash patterns
• Multiple units can be linked for synchronised flash
• Variable angle bracket included
• Current consumption: 0.4A @ 12V, 0.2A @ 24V
• Dimensions: 160 (L) x 78 (W) x 31mm (63mm mounted) (H)
• Steady on function
• 3 year warranty

---
