LAP Electrical Automotive Products

LAP-CX4012AC



LAP-CX4012AC Combining R65 amber warning flash with high-powered LED work lamp function in one complete light.


Main Features:
  • Multi-voltage (10-30V)
  • Manufactured with 12 x 1W amber LEDs (amber warning) and 8 x 5W white LEDs (LED work lamp)
  • ECE R65 approved amber flash
  • 7 x amber flash patterns (single flash meets R65)
  • Link mulitple units for synchronised amber flash
  • Ultra-bright LED work lamp function offering 3780 Lumen
  • EMC (ECE R10) approved
  • IP67 & IP69K ingress protection
  • Polycarbonate lens
  • High thermal conductivity alloy plastic housing
  • -40°C to +65°C extreme temperature reliability
  • Flood style beam pattern
  • 3 year warranty
  • Dimensions: 220 (L) x 58 (H) x 44mm (W)
  • 500mm power cable
  • 304 grade stainless steel fixings

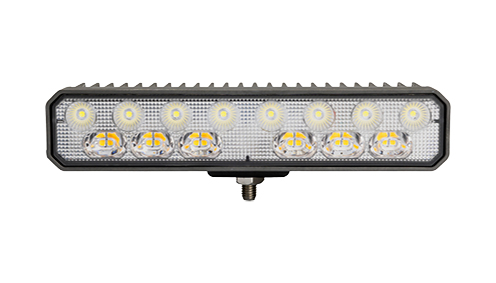

LAP-CX4012AC Combination Light
LAP-CX4012AC Combination Light

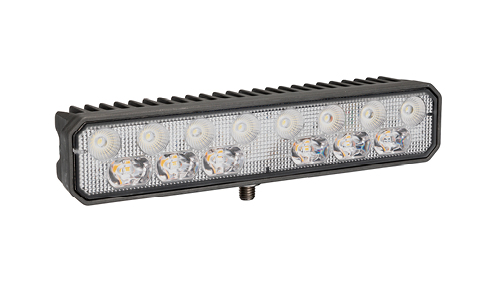

LAP-CX4012AC Combination Light (Side)
LAP-CX4012AC Combination Light (Side)

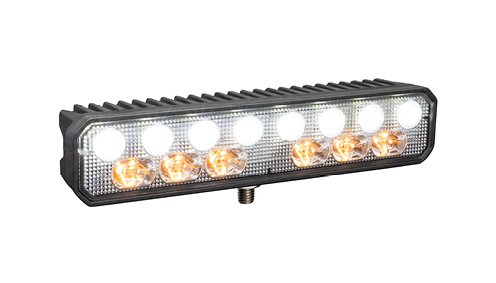

LAP-CX4012AC Combination Light (Side - On)
LAP-CX4012AC Combination Light (Side - On)
